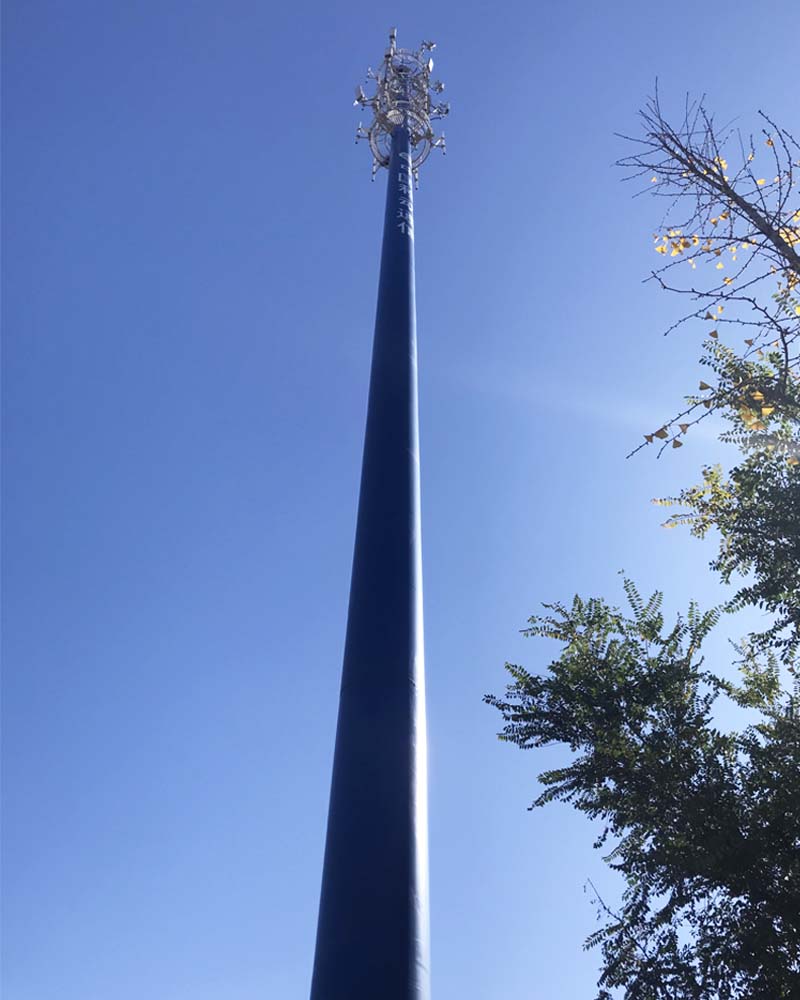

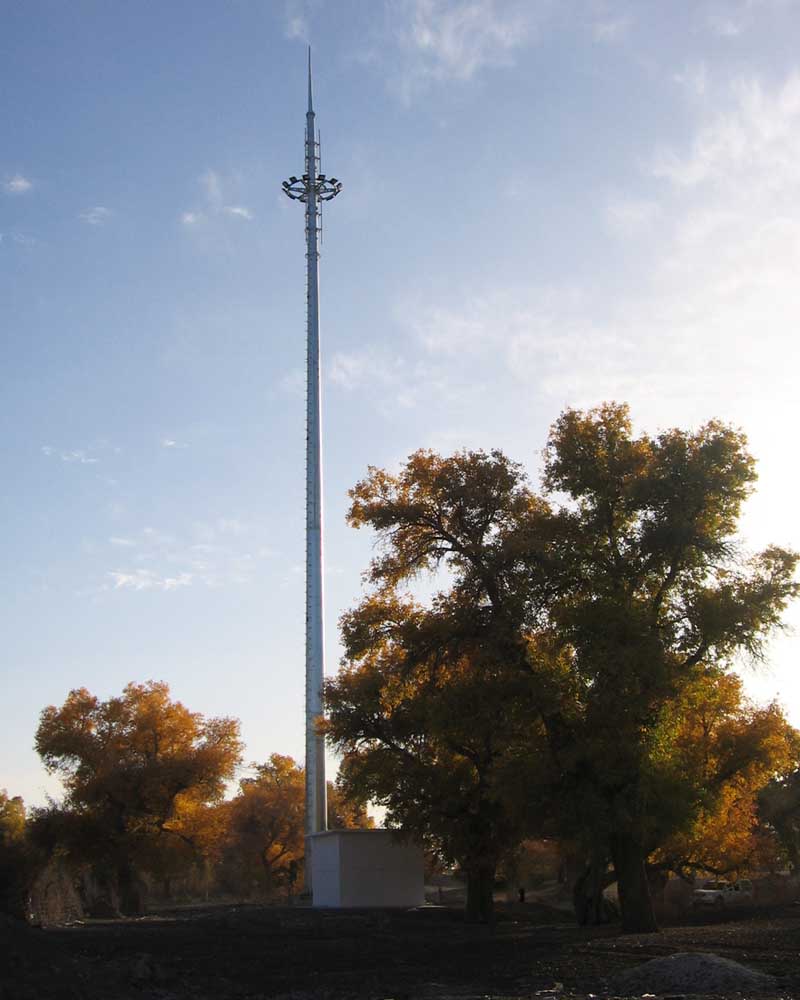

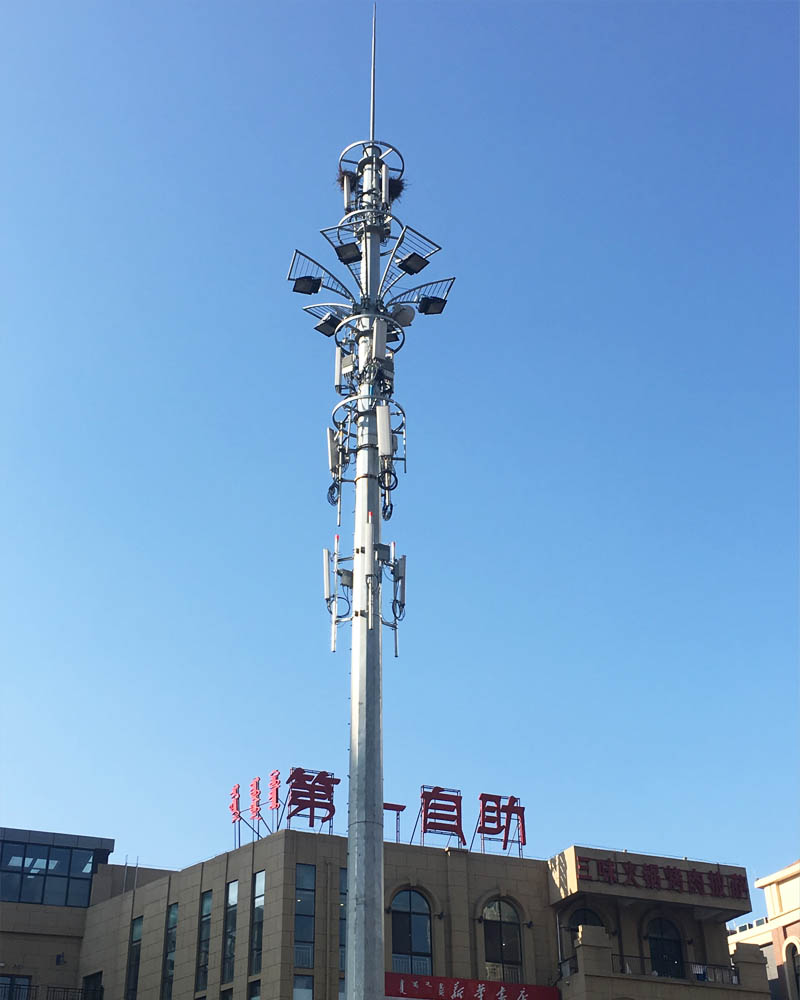

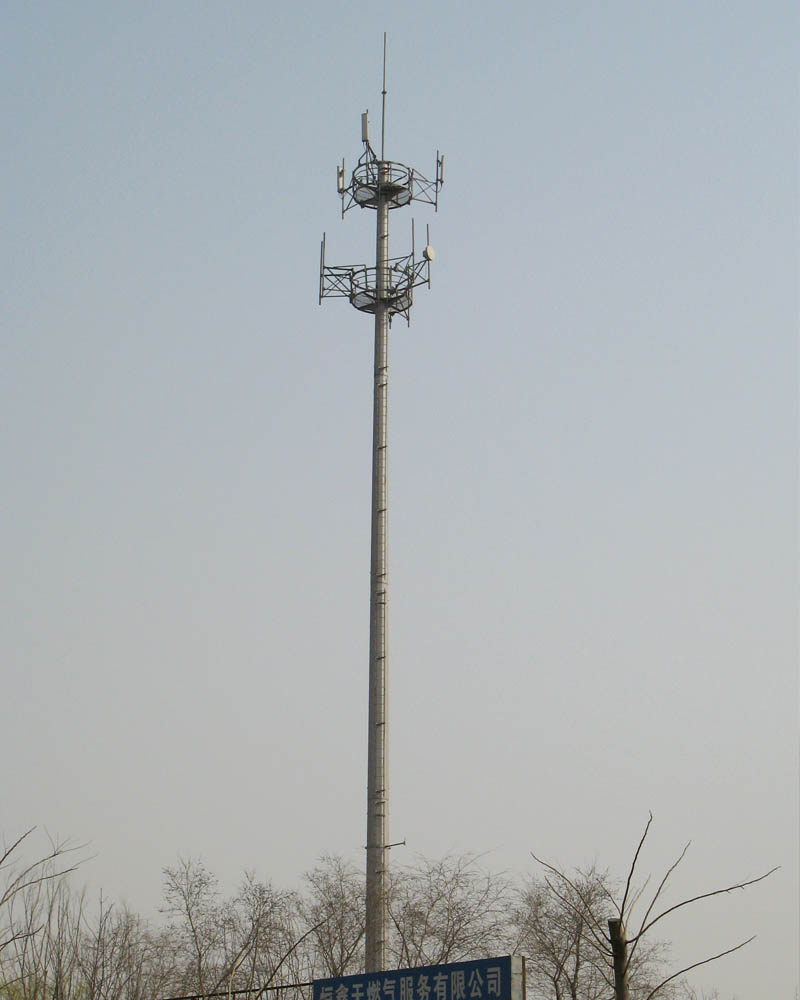

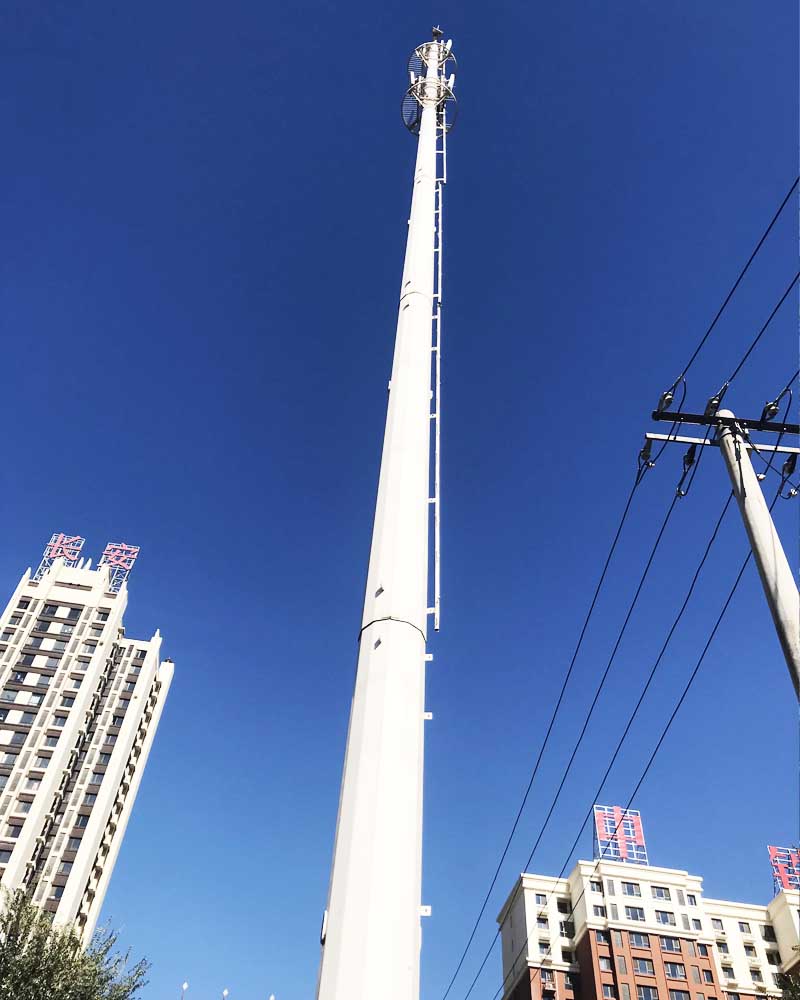

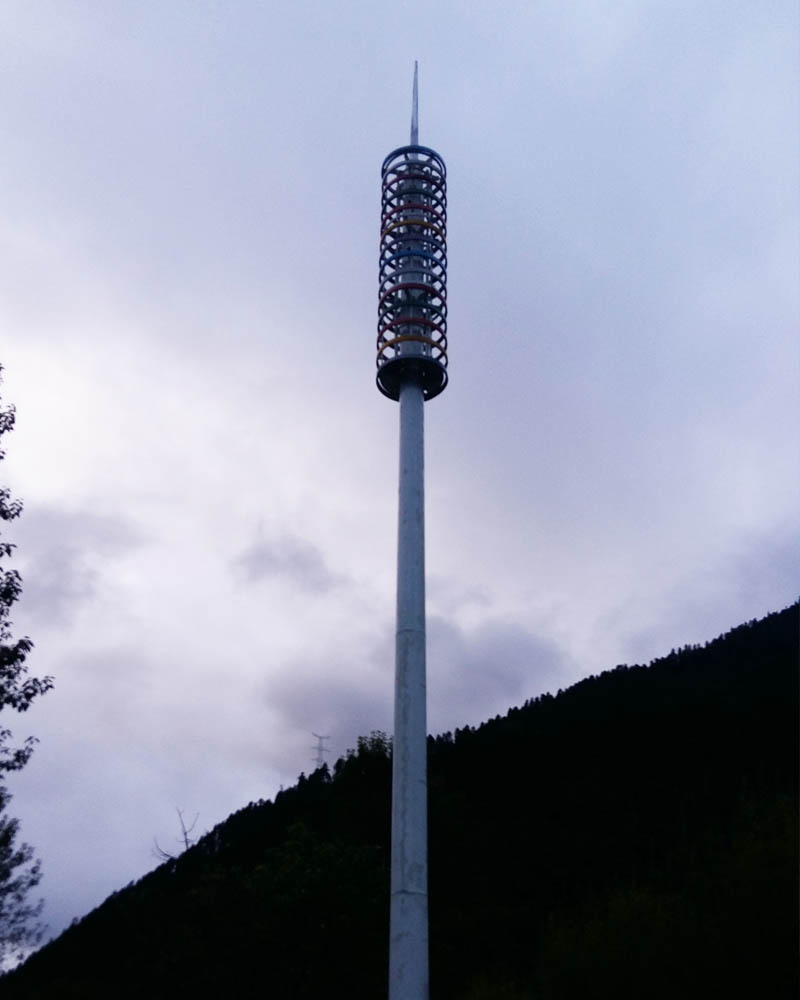

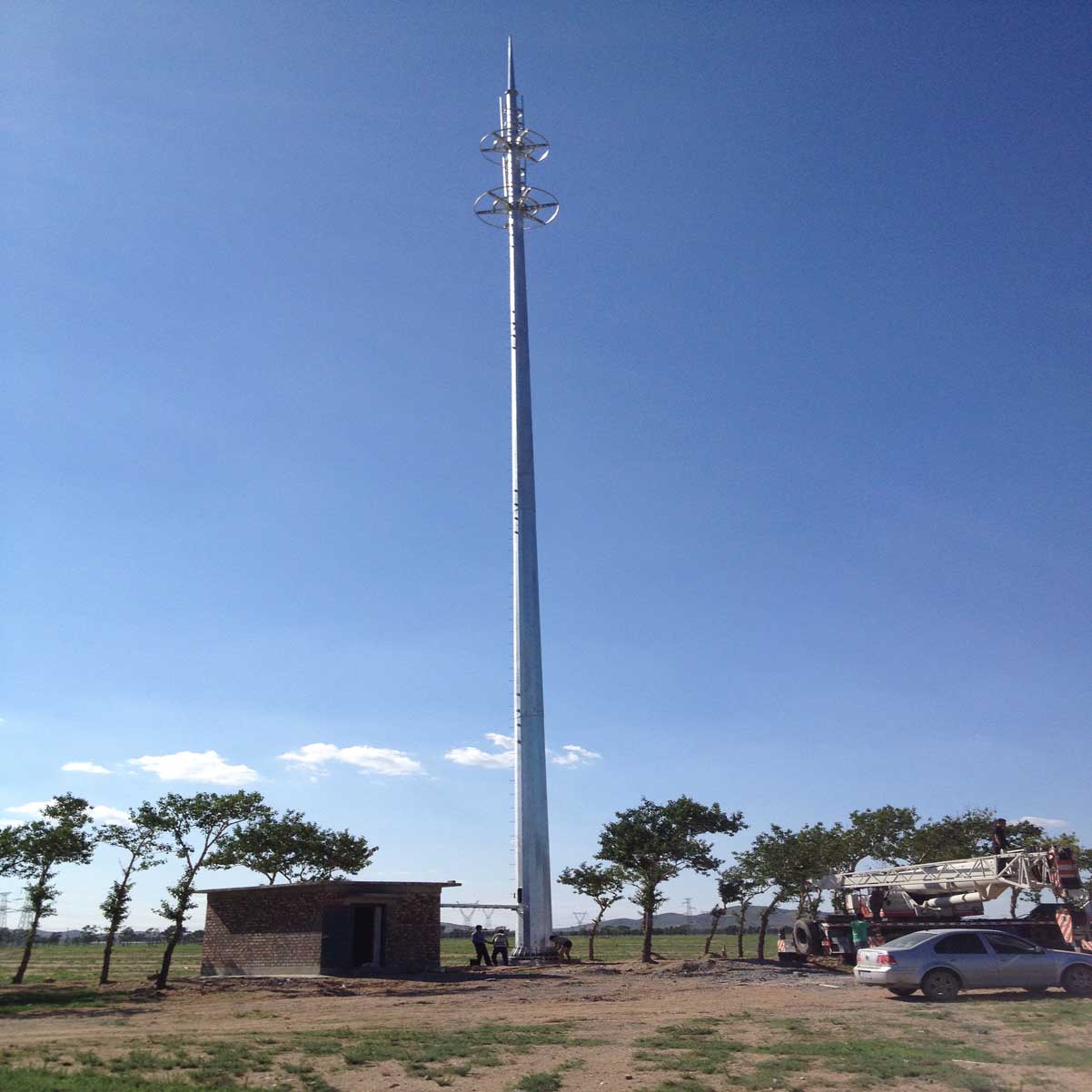

Monopole introduction
Single tube tower is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively. Antenna support is fixed on the fence of the platform.
Function:
1. Single tube towers are consisted of single tube and accessory, and main materials are generally made by steel plate bending.
2. The section of tower is circle or polygon, connected by inside flange, outside flange or plug-in.
3. The ladder and rest platform can be set inside the tower. Communication equipments can also be set there with high safety.
4. According to the customers’ choice, the ladder can be placed inside or outside.
5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.
6. Convenient and safe to install, small area covering, and easy to select site.
| Height | 0-60m |
| Wind pressure | 0~1kN/m2 (Chinese standard, other country’s standard may change based on it) |
| Wind speed | 0~180km/h (American standard 3s gust) |
| Foundation type | Independent foundation/Raft foundation/Pile foundation |
| Environment condition | Soft ground/Mountain groud |
| Type | Single pole |
| Quality system | ISO 9001:2008/TL9000 |
| Design standard | Chinese relative regulation/American standard G/American standard F |
| Material | Q235/Q345//Q390/Q420/Q460/GR65 |
| Galvanized | Hot dip galvanization (86μm/65μm) |
| Connection structure | Flange/Plugging |
| Lifetime | 30years/50years/100years |
